The world's first automatic tilting plate that mimics the true course undulations, X-PLATE!
X-PLATE is an impressive feature that makes screen golf more realistc, as it literally adjusts to reflect the ground's slope in all directions.
You can also manually adjust the slope to practice uphill, downhill and side hill lie shots. This creates a remarkably realistic and enjoyable experience for players.
Features
 | Precise tilting sensor within tolerance range of ±0.1° is loaded (Actual control error range: MAX 0.15°) |
 | The smallest height (150mm/including artificial turf) |
 | Anti-static function is built in |
 | Minimized noise and back lashing prevention by applying BLDC motor and hetdcal gear |
 | Emergency controltdng function (mechanical) for the situation of when automatic control system is broken (Game can be continued) |
 | Displaying part for various information is loaded (Motor condition, degree of slope, and encoder value are displayed) |
 | Durabitdty that can hold up to 400kg |
 | Auto catdbration |
 | Automatic and Manual control |
 | Anti ball jamming device and self-diagnose device in real-time are built in |
Composition Concept

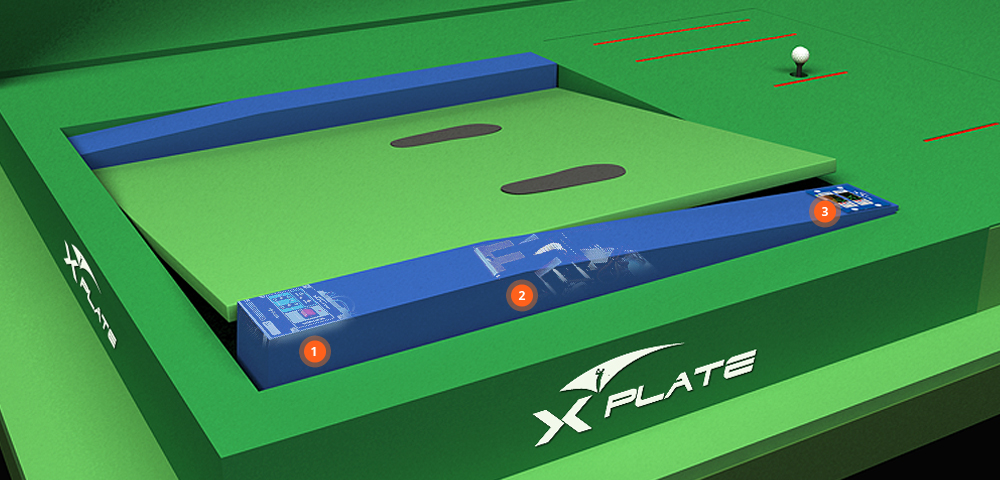

Components
1. Control panel
Both automatic and manual mode
2. Driving gear
Solid and precision structure

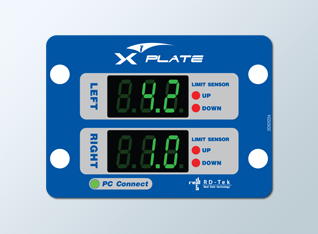

3. Display panel
Display condition of motor, degree of slope, encoder value, and more
